2006 SIDEL SBO - 16 PET stretch blow molding machine for sale
Specifications
| Manufacturer | SIDEL |
| Model | SBO - 16 PET stretch blow molding machine |
| Year | 2006 |
| Condition | Used |
| Brand | Sidel |
| Type | SBO 16 |

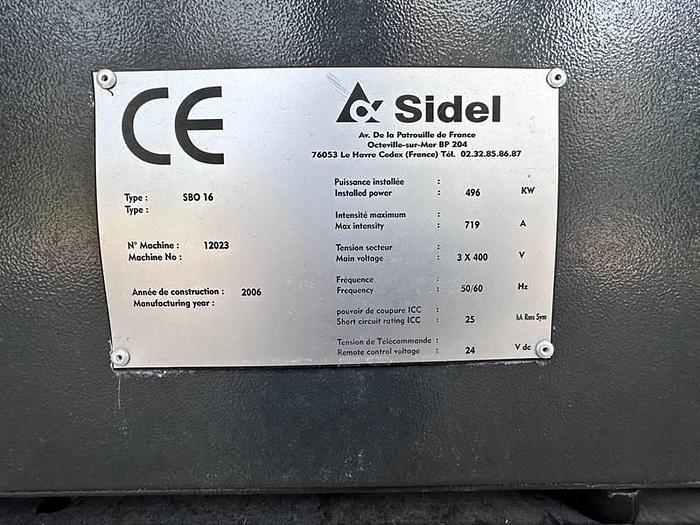

| Power | 496 kW |
| Electric connection | 400 V |
| Own weight | 22500 kg |
| Total dimension L | 15.300 mm |
| Total dimension W | 9.800 mm |
| Total dimension H | 5.000 mm |
| Description | Manufactured articles: Bottle and / or Flacon |
| Maximum cycle | 28 800 w/h |
| Operating conditions during production | Temperature: 18 °C - 25 °C / Humidity: Dew point at ambient pressure: 10°C - 12 °C |
| Maximum altitude | 1,000m |
| Frequency | 50 / 60 Hz |
| Power installed in the machine + options and miscellaneous | 492 kW + 171 kW |
| Pneumatics quantity (7 bar circuit for cylinder movement) | 319 (m3)°/h |
| Quantity (40 bar circuit for blow molding) | 2212 (m3)%/h |
| Hydraulic cooling of furnace ramps (water at 20°C) | 100 159 kJ/h & 3 mº/h |
| Temperature budget for cold molds (water at 12°C) | 164 661KJ/h & 14.4 m°/h |
| Temperature budget for hot molds (water at 65°C) | 152 398kJ/h & 14 m3/h |
| Incl. | Very extensive accessories for the machine; operating instructions are available; Dimensions correspond to the approximate space requirements of the machine. |
Description

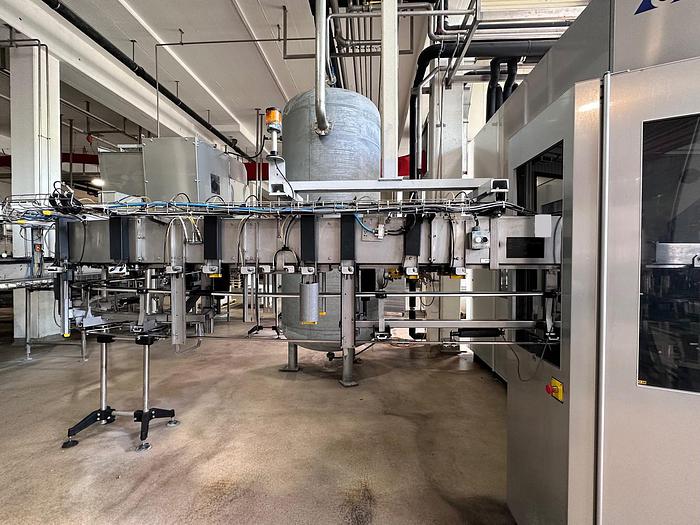

Complete SIDEL SBO 16 blow moulding system, consisting of; 2006 Sidel Lifting device with mini funnel / hopper; Preform feeding for PET production line, 2006 Sidel SBO 16 PET Stretch Blow Molding Machine, 2006 NTS Air conveyor, 2006 Schoneweg-Filterteknic BF GR 2/50 filters, 2006 B&B Anlagen Umwelttechnic HP 48 filters, 2006 Lohenner GmbH Pressure tank and stainless steel working tables.
Directly available. Location: Zürich area, Switzerland (additional services available, such as professional dismantling, loading and/or international transport).
Contact us for more complete SIDEL SBO 16 blow molding system photos, extra information and/or an inspection appointment.
* Please note that this description has been translated automatically. The information of this advertisement is only indicative and is subject to change at any time without notice. We recommend to check the details with the seller. Contact us for further information.
